Marvel Schebler Technical Help

The Marvel-Schebler carburetor is a type of updraft carburetor that was commonly used on a variety of farm tractors, stationary engines, and industrial equipment during the first half of the 20th century. It was designed to mix fuel and air in the correct proportions before it enters the engine, thus providing the correct amount of fuel to the engine to maintain a consistent combustion process.

Watch a video about rebuilding the Marvel Schebler

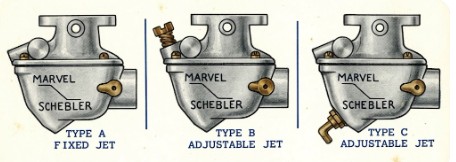

Marvel Schebler Carburetor

What Does the Gas Drain Do?

Because Marvel-Schebler carburetors are primarily updraft designs—meaning they hang below the intake manifold—gravity works against you if the carburetor floods. The gas drain (often referred to as the weep hole) serves as a critical safety relief valve to manage this excess fuel.

Here is exactly what it does and why it matters:

1. Prevents Hydrostatic Lock

When you shut down a hot engine, or if the float needle sticks open, raw fuel continues to flow and pools in the air horn (the bottom of the throat). Because the intake manifold sits above the carburetor, this fuel has nowhere to go. If the drain wasn't there, the raw fuel would eventually get sucked straight up into the engine cylinders the next time you cranked it. Because liquid cannot be compressed, this can cause hydrostatic lock, which is famous for bending connecting rods or blowing head gaskets. The drain ensures this excess fuel safely drips out onto the ground instead.

2. Acts as an Early Warning System

A small drip from this drain immediately after shut-down is perfectly normal for an updraft carburetor as the fuel vapor in the manifold condenses and drops down. However, if it drips constantly while sitting, it acts as a diagnostic indicator that the bowl is overfilling. It instantly tells you that you have a sinking float, a fuel pressure issue, or a piece of debris holding the viton needle off its seat.

Marvel Schebler Carburetor Manuals
Service Manual for Marvel Schebler Tractor & Industrial Carburetors - modes DLTX & TSX

Customer question.
Can you give me ideas on how to remove the main nozzle for a Marvel Schebler TSX-530 Type C carburetor? According to the Manual it unscrews from the bottom. I assume that the main jet and the nozzle are one piece. I haven't tried beating on it or cranking on it yet. I don't want to screw it up until I know that I can replace it. Have replacement parts?

My main problem is that the idle pick-up hole (the second one from the right of the main throat in the first pic. The first one I think is air vent to the bowl.) is clogged. I've tried using a copper wire, air pressure, and solvent, but can't unplug it. Consequently it won't idle without choking.

Yes, this jet does remove. You can try using a brass drift punch on the end and hitting it a few time with a hammer. Don't get over zealous. Penetrating oil might help. Be sure to clean the carburetor after because anything like WD40 will react with ethanol and eat the gaskets.

Try applying heat to the steel around the jet. That gets me out of trouble a lot of times.

Whatever you do, be careful about trying to turn the jet with a screw driver, having it slip and rounding off the edges. You will never get it removed if that is done. Make sure the jet is open. You don't have to remove it from the carburetor. Installing the throttle shaft packing on the TSX style of Marvel Schebler.

Measure the counter bored hole.
