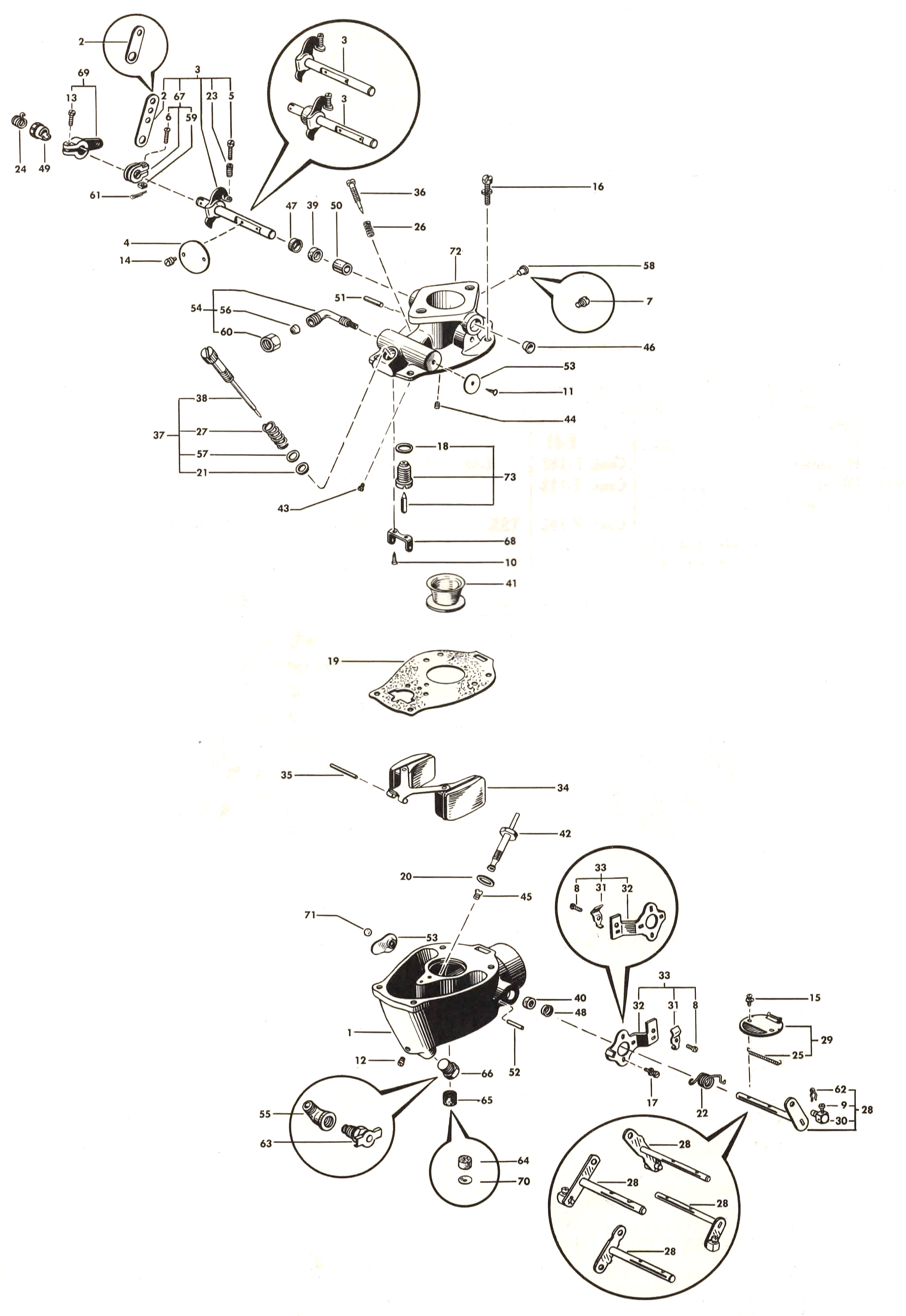

Marvel Schebler Continental Industrial TSX39 - TSX103 Exploded View
Marvel Schebler
1 Body Assembly
38 Needle Assy Power Adjusting
2 Lever Throttle, Loose
39 Packing Throttle Shaft
3 Shaft Stop & Lever Assy
40 Packing Choke Shaft
4 Valve Throttle 22, 20, 15 degrees
41 Venturi
5 Throttle stop screw
42 Nozzle Main
6 Clevis Clamp Screw 10-24 x 5/8
43 Jet Idle
7 Idle Drillig Screw 1/4-28 or 5/16 x 24
44 Jet Economizer
8 Choke Bracket Screw 8-32 x 5/16, Screw & Lock Washer Assy Choke Bracket 8-32 x 5/16
45 Jet Power
9 Choke Swivel Screw 8-32 5/16
46 Cup Throttle Shaft
10 Drive, Float Bracket Screw 2 x 1/4
47 Retainer Throttle Shaft Packing
11 Drive, Name Plate Screw 2 x 1/4
48 Retainer Choke Shaft Packing
12 Drill Plug, Nozzle Hole Screw 8-32
49 Bushing Governor Lever
13 Governor Lever Clamp Screw 12-24 x 5/8
50 Bushing Throttle Shaft
14 Screw & Lock Washer Assy Throttle Valve 6-32 x 1/4, 4-40 1/4
51 Pin Throttle Stop
15 Screw & Lock Washer Assy Choke Valve 6-32 x 1/4, 4-40 x 1/4
52 Pin Choke Stop
16 Screw & Lock Washer Assy Throttle Body to Bowl 12-24 x 5/8", 12-24 x 3/4
53 Plate Numbering
17 Screw & Lock Washer Assy Choke Bracket to Body 8-32 x 3/8
54 Fitting & Strainer Assy Fuel Inlet
18 Gasket Float Valve Seat
55 Elbow Street, Bowl Drain 1/8 NPT
19 Gasket Throttle Body to Bowl
56 Sleeve Compression Fuel Fitting
20 Gasket Main Nozzle
57 Washer Flat, Power Adjusting Needle
21 Gasket Power Adjusting Needle
58 Plug Idle Drilling
22 Spring Choke Return
59 Nut Clevis Clamp 10-24
23 Spring Throttle Stop Screw
60 Nut Fuel Inlet Fitting
24 governor Leverl Tension Spring61 Pin Cotter
25 Choke Valve Flapper Spring62 Cotter Hairpin Choke Swivel
26 Idle Needle Spring63 Cock Drain
27 Spring Power Adjusting Needle
64 Strainer Fuel Drain
28 Shaft & Leverl Assy Choke
65 Strainer Bowl Drain
29 Valve Assy Choke
66 Plug Bowl Drain
30 Swivel Choke Lever
67 Clevis Assy
31 Clip Choke Bracket
68 Bracket Float
32 Bracket Choke
69 Lever Assy Governor
33 Bracket Assy Choke
70 Plug Expansion Bowl Drain
34 Float & Lever Assy
71 Ball Numbering Plate
35 Shaft Float Lever
72 Throttle Body & Shaft Assy
36 Needle Idle Adjusting
73 Valve & Seat Assy
37 Needle Assy Power Adjusting
