Model DLTX Float and Strainer Service

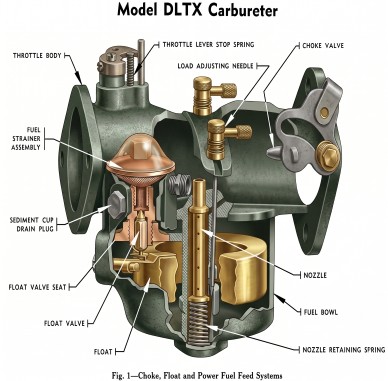

The float mechanism is contained in a cast iron fuel bowl (Figure 1) on all DLTX models with the exception of Model DLTX-26 and Model DLTX-46. In these two carburetors, the float assembly is retained by the throttle body casting and surrounded by a stamped metal fuel bowl.
All models feature a fuel strainer to prevent dirt and foreign substances from entering the fuel bowl.
Fuel Strainer Service Procedure
To service the fuel strainer in the cast iron fuel bowl, follow these steps:
-
Drain the Cup: Remove the sediment cup drain plug (Figure 1) to permit any accumulated dirt and fuel to drain off.
-
Remove and Clean: Remove the fuel strainer assembly. Clean it thoroughly using gasoline and compressed air.
-
Flush the Sediment Cup: Turn on the fuel supply valve and use a small brush to wash out any remaining dirt or debris from the cup.
Important: Be careful not to damage or lose the composition gasket on the fuel strainer assembly. Always replace a damaged or compressed gasket to prevent leaks.
