Marvel Schebler Float System: Understanding its Importance in Engine Operations
The Marvel Schebler float system is an essential component of many engine operations, providing critical fuel delivery and carburetion services. This sophisticated system, invented by Marvel Schebler Carburetor Company in the early 20th century, is designed to ensure consistent and precise fuel delivery to engines, optimizing performance and efficiency.
In this article, we will delve into the intricacies of the Marvel Schebler float system, exploring its key components, functions, and benefits. Whether you are a mechanic, engine designer, or aviation enthusiast, understanding the Marvel Schebler float system is crucial to maintaining the health and performance of your engines.
The Marvel Schebler Float System: An Overview
The Marvel Schebler float system is essentially a carburetor that is designed to atomize and mix fuel with air in the correct ratio to allow combustion in an engine. It is commonly used in light aircraft engines, as well as in industrial, agricultural, and marine applications.
The Marvel Schebler float system consists of several key components, including the carburetor body, float, needle valve, throttle, and choke. These components work together to provide a constant supply of fuel to the engine, ensuring smooth and reliable performance.
Key Components of the Marvel Schebler Float System
Carburetor Body
The carburetor body is the main component of the Marvel Schebler float system, serving as the housing for the float, needle valve, throttle, and choke. This component is typically made of aluminum or other lightweight materials, providing a durable and lightweight solution for engine operations.

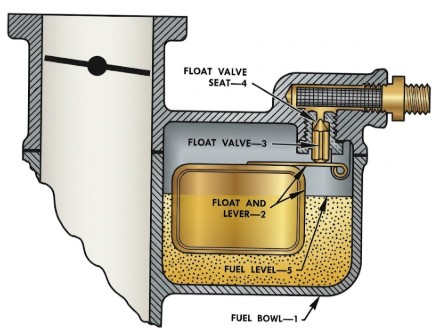

Float
The float is a crucial component of the Marvel Schebler float system, acting as a buoyant device that regulates the flow of fuel into the carburetor body. The float is connected to a needle valve that opens and closes based on changes in fuel levels, allowing the correct amount of fuel to enter the carburetor body at all times.

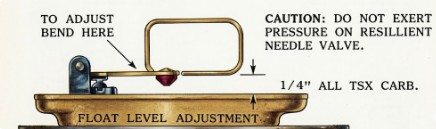

Float Level Adjustment
Measure from the gasket to the edge of the float. 1/4"
Needle Valve
The needle valve is a critical component of the Marvel Schebler float system, controlling the flow of fuel into the carburetor body. This component is connected to the float, opening and closing based on changes in fuel levels to ensure a consistent and precise flow of fuel.
Throttle
The throttle is an adjustable valve that controls the amount of air that enters the engine, affecting engine speed and power. In the Marvel Schebler float system, the throttle is typically connected to the carburetor body, allowing for precise control over engine performance.
Choke
The choke is a valve that restricts the flow of air into the engine, increasing the amount of fuel that is delivered. This component is typically used when starting a cold engine, allowing it to warm up and reach optimal performance levels more quickly.
The Functions of the Marvel Schebler Float System
The Marvel Schebler float system serves several key functions in engine operations, including:
Fuel Delivery: The float system delivers fuel to the engine in the correct ratio, allowing for efficient combustion and performance.
Atomization and Mixing: The Marvel Schebler float system atomizes and mixes fuel with air, ensuring a consistent and precise flow of fuel to the engine.
Engine Speed Control: The throttle in the Marvel Schebler float system provides precise control over engine speed, allowing for smooth and reliable performance.
Choke Functionality: The choke in the Marvel Schebler float system restricts the flow of air into the engine, providing a quick and effective means of warming up
