Carter RBS Technical

The fuel bowl vapor vents in this carburetor are located within the air horn. This venting is designed to provide rapid vapor dissipation for best performance under idle and hot start conditions



The main fuel metering system incorporates a diaphragm controlled step-up type metering rod. This rod is used to correlate fuel supply to demand

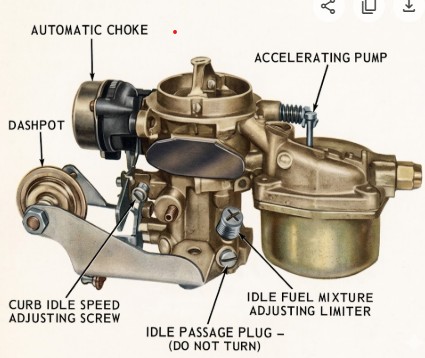

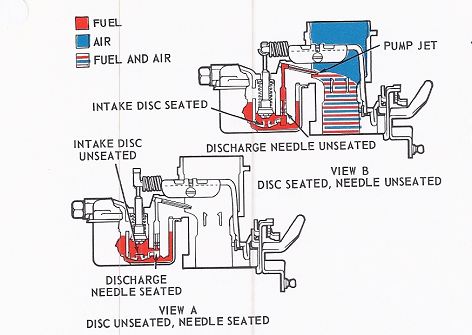

The accelerator pump located inside the fuel bowl is spring actuated for positive full discharge. On closed throttle operation, the pump is raised up against spring pressure causing fuel to flow up past the intake disc. On acceleration the pump is released and the spring drives the plunger down forcing fuel up past the discharge needle and out the discharge jet. The Model RBS carburetor incorporates a combination vacuum piston and bi-metal spring to operate the automatic choke. On most installations the mechanical dashpot assembly is used to control the closing rate of the throttle plate upon deceleration. Some units are equipped with an electric solenoid actuated throttle positioner. This positioner is designed primarily to eliminate the problem of dieseling after engine shut down.
