Zenith 267 Carburetor High-Speed Circuit Guide
The high-speed circuit in the Zenith 267 carburetor controls fuel delivery when your engine is running above idle speed and under load. Understanding how this circuit works is key to diagnosing issues like hesitation, poor acceleration, or lack of power at higher RPMs.

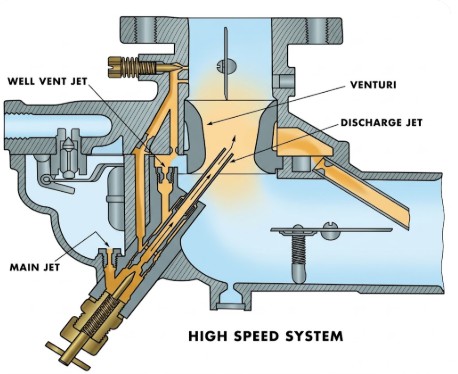

How the Zenith 267 High-Speed Circuit Works
When you open the throttle past idle, air flows faster through the venturi, creating a vacuum that pulls fuel from the main jet. Here’s how the high-speed circuit operates:
-
Fuel travels from the float bowl through the main jet, which meters the correct amount of fuel.
-
The fuel mixes with air from the air bleeds to create an emulsion, which improves atomization.
-
This air-fuel mixture is drawn through the main discharge nozzle into the carburetor throat.
-
As engine speed increases, the vacuum signal strengthens, drawing more fuel to maintain the right air-fuel ratio.
The high-speed circuit ensures your engine has the fuel it needs for smooth acceleration, strong power output, and efficient combustion.
Common Zenith 267 High-Speed Circuit Problems
1. Hesitation or Flat Spots:
-
May be caused by a partially clogged main jet or dirty main discharge nozzle.
-
Air bleeds blocked by debris can cause the fuel mixture to run too rich or lean.
2. Poor High RPM Power:
-
Often linked to undersized or partially blocked jets.
-
Fuel level in the float bowl may be too low, starving the high-speed circuit.
3. Surging at Cruise:
-
Air leaks at the carburetor base gasket or throttle shaft can lean out the mixture at mid to high throttle.
-
Incorrect jet sizing can also cause surging.
How to Maintain the Zenith 267 High-Speed Circuit
-
Keep the fuel supply system clean — always use fresh fuel and a clean filter.
-
Inspect and clean the main jet and discharge nozzle during a rebuild.
-
Check the float level to match factory specs so the main jet gets a steady fuel supply.
-
Make sure air bleeds are open to allow proper fuel emulsification.
Why the High-Speed Circuit Matters
A properly functioning high-speed circuit ensures your Zenith 267 carburetor provides the right fuel mix for smooth driving, good fuel economy, and maximum engine power when you need it most.
Keep your Zenith 267 high-speed circuit clean and tuned for reliable performance in the field or on the road.
