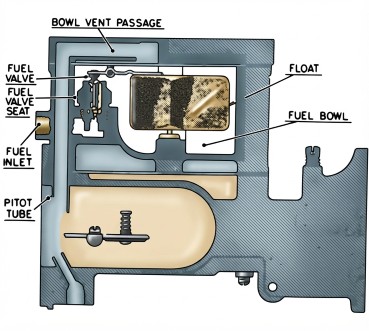

Zenith 11 Fuel System: How It Works
The primary job of the Zenith 11 fuel system is to deliver a perfectly balanced mixture of fuel and air to the engine, adapting instantly to how hard the vehicle is working. Here is a step-by-step breakdown of how it manages that process:
1. Fuel Delivery under Pressure
The process begins when fuel is pushed under pressure from the fuel tank into the carburetor. It enters through the fuel inlet fitting and passes directly through the fuel valve (which consists of a needle and a seat). This valve acts like a high-precision faucet, controlling the exact amount of fuel allowed into the main holding area.
2. The Float Chamber & Level Regulation
Once past the valve, the fuel fills the float chamber (also known as the fuel bowl). Inside this chamber sits a dual float attached to a lever.
How it regulates itself: Think of it like the float mechanism inside a household toilet tank. As the fuel level rises in the bowl, the dual float lifts up.
Closing the valve: When the fuel reaches a specific, predetermined height, the attached float lever presses the needle firmly into its seat, shutting off the fuel valve and stopping the incoming flow.
3. Adapting to Engine Demand
The system is entirely self-regulating based on how the vehicle is being driven.
When you accelerate or carry a heavy load, the engine's demand for fuel increases, and the liquid level in the fuel bowl begins to drop.
As the fuel level goes down, the float drops with it, which automatically reopens the fuel valve to let more fuel rush in.
By constantly balancing the position of this float, the carburetor ensures there is always a steady, reliable reservoir of fuel ready to meet changing engine speeds and workloads without flooding or starving the motor.
