Why Marvel Schebler Carburetors Flood – Causes & Fixes
Marvel Schebler carburetors are rugged, dependable, and widely used on classic tractors and vintage equipment. But when they flood, the result is messy: hard starting, fuel dripping from the carb, black smoke, or even engine stall. Understanding the root causes of flooding in a Marvel Schebler carb can help you troubleshoot the issue quickly and keep your engine running smoothly.
What Does “Flooding” Mean in a Carburetor?
Flooding happens when too much fuel enters the carburetor or engine, overwhelming the normal air/fuel mixture. In a Marvel Schebler, this can show up as:
-
Gas leaking from the throttle shaft or vent
-
Strong fuel odor
-
Black smoke from the exhaust
-
Hard or no starting when hot or cold
Common Causes of Marvel Schebler Flooding
1. Float Level Set Too High
An incorrectly adjusted float can cause excess fuel to fill the bowl and overflow into the carburetor throat. Check and reset the float to the factory specification.

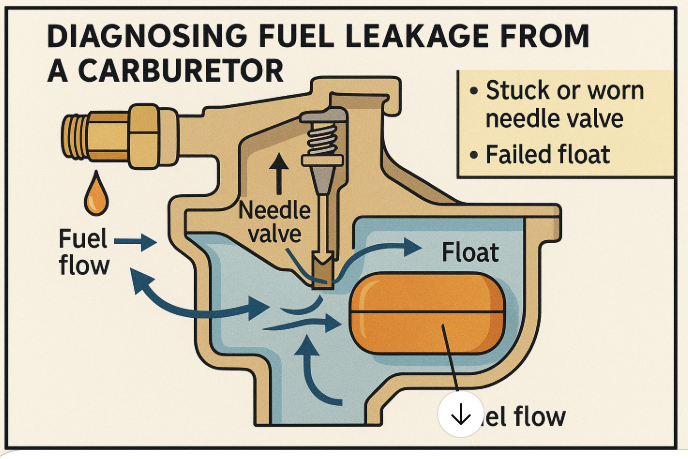

2. Sticking or Leaking Needle and Seat (most likely cause)
If the needle doesn't seal properly, fuel keeps flowing into the bowl—even when it’s already full. Dirt, varnish, or wear can prevent proper sealing. Replace the needle/seat or clean with solvent if reusable.
3. Float Saturated or Damaged
Old brass or nitrophyl floats can become heavy with fuel if they crack or absorb gas. This causes the float to sink, misreading fuel level and causing overflow. Replace the float if it's heavy or damaged.
4. Fuel Pressure Too High
Marvel Schebler carbs are gravity-fed or designed for low pressure (~1-3 PSI). If a mechanical or electric fuel pump is pushing too much pressure, the needle can be forced open. Install a pressure regulator if needed.
5. Debris in Needle Valve
Tiny contaminants can wedge between the needle and seat, keeping them from closing. Always install an inline fuel filter and flush lines when rebuilding the carburetor.
6. Choke Stuck Closed
A choke that stays closed after startup can enrich the mixture to the point of flooding. Make sure the choke plate moves freely and opens as the engine warms.
7. Worn Throttle Shaft or Gaskets
Fuel can leak externally if the throttle shaft bore is worn or if old gaskets allow fuel seepage when pressure builds inside the bowl.
Quick Troubleshooting Tips
-
Float test: Shake the float; if it sloshes or feels heavy, it’s fuel-soaked.
-
Fuel shutoff test: Turn off the fuel supply and observe if the leak stops. If it does, it’s likely a float or needle/seat issue.
-
Watch fuel pump pressure: Use a fuel pressure gauge to confirm it's under 3 PSI.
Final Thoughts
Flooding in a Marvel Schebler carburetor is usually tied to float and fuel control problems. Careful inspection of the float, needle, and seat—combined with correct fuel pressure—usually resolves the issue. If you've recently rebuilt the carb and it's still flooding, recheck float height and inspect the needle under magnification for imperfections.
If you need replacement parts, ethanol-resistant rebuild kits, or floats for your Marvel Schebler, be sure to get high-quality components that meet OEM standards from Mike's Carburetor Parts.
