FUNCTION
To control synchronization while opening the throttle and transmission shifting
TROUBLESHOOTING
If the linkage is not properly adjusted you may experience:
- The carburetors will not be synchronized
- Shift pattern problems (too early or too late) may be experienced

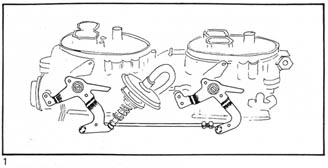

ADJUSTMENT
- Long rod adjust: the long center connected rod to fit tension free and install. It must be tension free so as not to bind and change the synchronization
- Short rod with free travel: fully extended the rod should fit neutral from ball join to ball joint
- Short rod solid adjust: adjust the rod slightly short from ball joint to ball joint, so that the bell cranks is lifted from its rest position by approximately 2mm
