FUNCTION
Applies to K4A Automatic Transmissions only

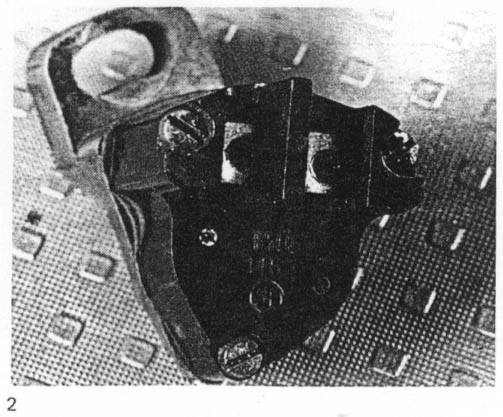

The idle lifting switch controls the two-way solenoid on top of the automatic transmission.
TROUBLESHOOTING
If the idle lifting switch is not operating or adjusted properly, the results can be:
- Slipping of the transmission on acceleration
- Very rough downshift of the transmission
- Damage to the transmission
ADJUSTMENT
- Attach a test light from outlet terminal of switch to ground
- Accelerate slowly while observing light
- Adjust switch as necessary by loosening the mounting screws and pivoting siwtch until light goes out (switch opens) at between 1400 and 1600 RPM
