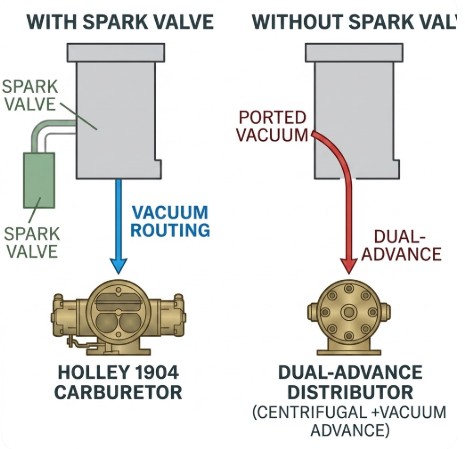

On the Holley 1904 carburetor, the distributor type depends on whether the carb is equipped with a spark control valve (SCV). Since you specified your carburetor does not have a spark valve, here’s what that means:
Distributor Type Used
-
A Holley 1904 without a spark valve is designed to work with a later-style distributor that uses centrifugal and vacuum advance.
-
These distributors take ported vacuum (from above the throttle plate) instead of relying on the carburetor’s spark control valve system.
-
This is the same style used with many mid-1960s Ford inline-six engines, after Ford phased out Load-O-Matic distributors.
Contrast With Spark Valve Models
-
If the 1904 had a spark valve, it would be paired with a Load-O-Matic distributor.
-
The spark valve meters vacuum advance in proportion to throttle opening and venturi signal—something the Load-O-Matic requires.
-
Without the SCV, the Load-O-Matic won’t work correctly because it depends on that special vacuum signal.
Here’s how it works in terms of vacuum:
Spark Valve Operation
-
At idle: The spark valve is closed. Manifold vacuum is high (16–20 inHg), but no vacuum signal is sent to the distributor advance.
-
At part throttle: As airflow through the carburetor increases, a small venturi vacuum port feeds the spark valve. It begins to open when venturi vacuum reaches about 6–8 inches of mercury (Hg). This vacuum is then routed to the distributor to advance the timing.
-
At wide-open throttle: Venturi vacuum drops, the spark valve closes, and the distributor advance is cut off.
Key Point
The spark valve typically operates in the 6–8 inHg venturi vacuum range. If your 1904 won’t advance the distributor properly, check:
-
That the spark valve spring and plunger are free and not sticking.
-
That the small passage from the venturi to the valve isn’t clogged.
-
That the diaphragm in your Load-O-Matic distributor is holding vacuum.
If you’re running a later distributor (one that uses ported vacuum instead of the Holley’s spark valve signal), the 1904 spark valve system won’t work properly — in those cases people often plug the valve and use a different vacuum source.
