Testing Mazda Fuel Pumps: A Comprehensive Guide
Mazda is a Japanese automaker known for its sleek designs, performance-focused engineering, and quality components. One of the most critical components in any Mazda vehicle is the fuel pump, which plays a crucial role in delivering fuel from the fuel tank to the engine.
In this article, we'll take a closer look at Mazda fuel pumps and provide a comprehensive guide to testing them, including the tools you'll need, the steps you'll follow, and what to look for when testing your fuel pump.
Tools Needed for Testing a Mazda Fuel Pump
Before we dive into the testing process, let's first look at the tools you'll need to get started. Here's a list of items you'll need:
- Fuel pressure gauge
- Fuel pressure testing kit
- Voltage meter
- Fuel pump relay
- Fuse
- Wrench set
- Screwdrivers
- Pliers
Step 1: Preparation
The first step in testing your Mazda fuel pump is to prepare your vehicle. Make sure your Mazda is parked on level ground and the engine is off. Then, locate the fuel pump fuse and relay. These components are usually located in the engine compartment near the battery.
Step 2: Check Fuel Pressure
The next step is to check the fuel pressure. To do this, you'll need to connect your fuel pressure gauge to the fuel rail test port. If your Mazda does not have a test port, you can purchase a fuel pressure adapter kit that will allow you to connect your gauge.

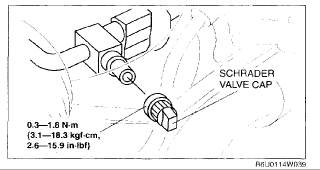

Remove the fuel line Schrader valve cap located under the throttle body.
Once you've connected the gauge, turn the ignition key to the "on" position (but don't start the engine). The gauge should read between 45 and 50 psi. If the reading is lower than 45 psi, this could indicate a problem with your fuel pump.
Step 3: Check Fuel Pump Voltage
Next, it's time to check the voltage at the fuel pump. To do this, you'll need to use your voltage meter to check the voltage at the fuel pump wiring harness. Turn the ignition key to the "on" position (but don't start the engine), and check the voltage reading. The reading should be between 12 and 14 volts. If the reading is lower than 12 volts, this could indicate a problem with the fuel pump relay or the fuse.
Step 4: Check Fuel Pump Relay
If the voltage reading is lower than 12 volts, it's time to check the fuel pump relay. You can do this by swapping the relay with a known good one. If the relay is functioning correctly, the voltage reading should be between 12 and 14 volts. If the relay is not functioning correctly, you may need to replace it.
Step 5: Check Fuel Pump Fuse
If the voltage reading is still lower than 12 volts after checking the fuel pump relay, it's time to check the fuel pump fuse. You can do this by using a wrench set to remove the fuse from the fuse box. Then, inspect the fuse to see if it's blown. If it's blown, you'll need to replace it with a new one.
Conclusion
Testing a Mazda fuel pump is a relatively straightforward process, but it's important to follow the steps carefully to ensure accuracy. If you're not confident in your abilities, it's always best to seek the help of a professional. Whether you're a seasoned mechanic or a beginner, following this guide will help you quickly identify any issues with your fuel pump and get your Mazda running smoothly again.
