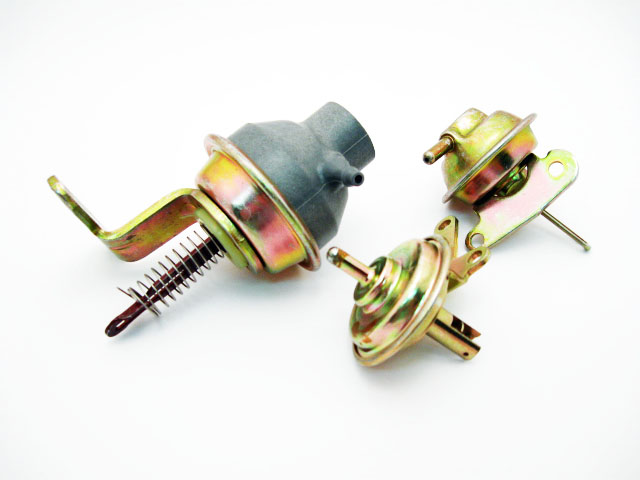

A bad choke pull-off (also known as a choke break or vacuum break) on a Motorcraft 2150 carburetor can cause a variety of cold start and drivability problems. The choke pull-off’s job is to slightly open the choke plate after engine startup to prevent an overly rich mixture. When it fails, it disrupts the critical balance of air and fuel during warm-up.
Symptoms of a Bad Choke Pull-Off on a Motorcraft 2150
1. Engine Runs Too Rich After Cold Start
The choke plate stays fully closed too long
Black smoke from the exhaust
Strong fuel smell
Fouled spark plugs over time
2. Engine Stalls Shortly After Starting
Excessively rich mixture causes the engine to load up and stall
May restart but continues to stumble or die until warm
3. Rough or Hesitating Idle When Cold
Choke doesn’t open slightly as intended
Poor combustion from fuel-heavy mixture
Feels like it's "chugging" or bogging down
4. Delayed Choke Opening
Choke stays closed even as the engine warms up
Can cause overheating, carbon buildup, and poor MPG
5. No Vacuum Reaction When Testing
With a vacuum pump or when the engine starts, the diaphragm doesn’t retract
Indicates a failed or leaking internal diaphragm
Ford Motorcraft Autolite Carburetor Parts
How to Test the Choke Pull-Off
Apply Vacuum: Use a hand-held vacuum pump to apply vacuum to the pull-off unit.
Watch the Rod/Linkage: It should pull the choke open slightly and hold position.
If It Doesn’t Hold: It’s leaking internally and must be replaced.
Pro Tip:
A bad choke pull-off is often misdiagnosed as a carb tuning issue. Always check the pull-off function before adjusting idle mixture screws or float levels.
