The Carter AS carburetor, like many carburetors, uses a combination of a metering rod and main jet to control the fuel mixture that is delivered to the engine. Here's a basic overview of how this system works:
-
Main Jet: The main jet in a carburetor is a precisely sized orifice that controls the maximum flow of fuel into the carburetor's mixing chamber. The size of the jet determines how much fuel can pass through it.
-
Metering Rod: The metering rod works in conjunction with the main jet. It is a needle-like component that fits into the main jet. The metering rod can move up and down, changing the effective size of the main jet opening.
-
Throttle and Engine Load: The position of the metering rod is typically controlled by the throttle and the vacuum created by the engine. At low throttle settings (low engine load), the vacuum is higher, which pulls the metering rod deeper into the main jet, effectively making the jet opening smaller and leaning the fuel mixture.
-
High Throttle Settings: When the throttle is opened (increased engine load), the vacuum decreases. This allows the metering rod to rise, pulling it out of the main jet and enlarging the jet opening. This action enriches the fuel mixture by allowing more fuel to flow through the main jet.
-
Engine Demands: As the engine demands change (like during acceleration, cruising, or idling), the combination of the main jet and metering rod adjusts the fuel flow to meet these demands, ensuring the engine runs efficiently under different conditions.
-

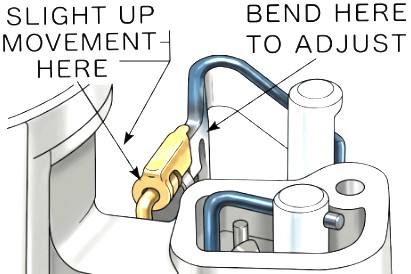

Tuning and Adjustments: In some carburetors, the metering rod and/or the main jet can be changed or adjusted to fine-tune the fuel mixture for specific engine requirements or operating conditions.
The metering rod and main jet system is a simple yet effective way to control the fuel mixture in a carburetor. It ensures that the engine receives the right amount of fuel for various operating conditions, contributing to optimal engine performance and efficiency.
