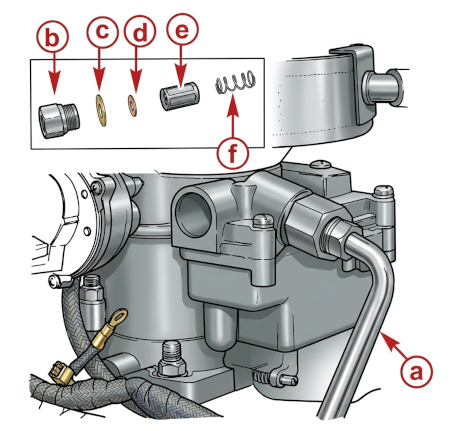

a - Fuel Line
b - Fuel Inlet Filter Nut c - Gasket (Large) d - Gasket (Small) e
- Filter f - Spring
2. Clean filter nut and spring in solvent and dry with compressed air.
3. Install in the following order:
. Spring - place in carburetor body.
. Filter - open end to inlet filter nut.
. Small gasket - place inside filter nut.
. Large gasket - place over filter nut threads.
Fuel inlet filter nut - torque nut to 18 lb-ft (24 Nm).
