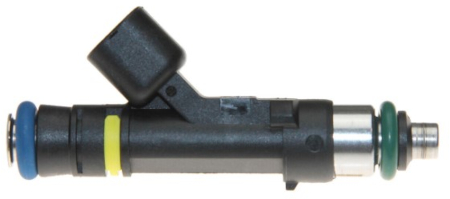

How to Test Ford 5.4L Fuel Injectors

1. Poor fuel economy


2. Misfires

3. Rough idle

4. Difficulty starting the engine:

5. Check Engine Light

6. Lack of power

7. Black smoke from the exhaust

8. Stalling

Fuel injectors are a critical component of a vehicle's fuel system, responsible for delivering fuel to the engine in precise amounts. The Ford 5.4L engine, which is used in various Ford models such as the F-150 and the F-250, utilizes a set of eight fuel injectors, one for each cylinder. These injectors are located in the intake manifold and deliver fuel directly to the cylinders. However, over time, fuel injectors can become clogged, worn, or otherwise faulty, which can lead to issues with the vehicle's performance. We are going to discuss how to test the fuel injectors on a Ford 5.4L engine to ensure they are working properly.

Before beginning the test, it's important to have the right tools and equipment. You will need a multimeter, a fuel pressure gauge, and a noid light. A noid light is a diagnostic tool that attaches to the injector electrical connector and allows you to see if the injector is receiving power.

The first step in testing the fuel injectors is to check the fuel pressure. The fuel pressure should be within the manufacturer's specified range, which can typically be found in the vehicle's owner's manual. Engine Off, 30-45psi, Engine Running, 27-42psi. If the fuel pressure is too low, it may indicate a problem with the fuel pump or a restriction in the fuel system. If the fuel pressure is too high, it may indicate a problem with the fuel pressure regulator.

Next, you will use the noid light to check the injectors for power. Connect the noid light to the electrical connector of each injector and crank the engine. The noid light should flash if the injector is receiving power. If the light does not flash, it may indicate a problem with the injector or the wiring.

The next step is to check the injectors for resistance. Using the multimeter, measure the resistance of each injector. The resistance should be within the manufacturer's specified range, which can typically be found in the vehicle's service manual. It should be between 10 and 18 ohms. If the resistance is too high or too low, it may indicate a problem with the injector.

Finally, you can perform a spray test to check the injectors for proper spray pattern and volume. To do this, remove the intake manifold and aim the injectors at a clean surface. Crank the engine and observe the spray pattern and volume of each injector. The spray pattern should be consistent and the volume should be equal among all injectors. If the spray pattern or volume is inconsistent, it may indicate a problem with the injector.

In conclusion, testing the fuel injectors on a Ford 5.4L engine is a relatively simple process that can be done with the right tools and equipment. By checking the fuel pressure, using a noid light to check for power, checking the injectors for resistance, and performing a spray test, you can ensure that your fuel injectors are working properly and prevent any potential issues with your vehicle's performance. We recommend replacing your fuel injectors with new original equipment type fuel injectors.
