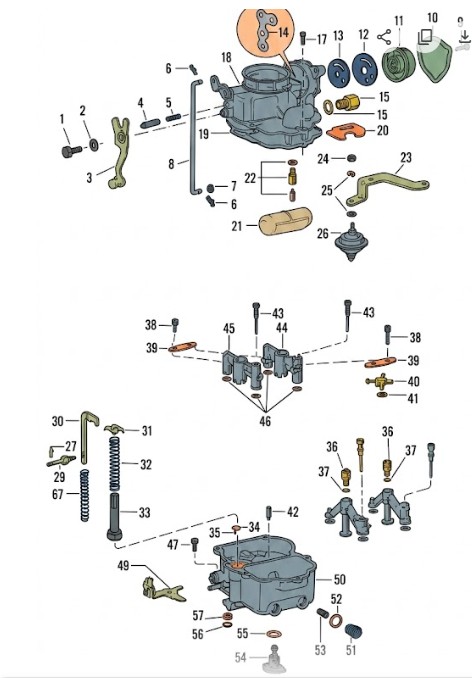

Holley 94, 2100 Exploded View

1. Screw - Choke Lever
2. Washer Screw Choke Lever
3. Lever Choke
4. Plunger Choke Lever
5. Spring Choke Lever Plunger
6. Retainer Fast Idle Rod
7. Washer 8. Rod Fast Idle
9. Screw Stat Cover
10. Retainer Stat Cover
11. Stat Cover
12. Gasket Stat Cover
13. Plate Choke Baffle
14. Gasket Choke Housing
15. Fitting Fuel Inlet
16. Gasket Fuel Inlet
17. Screw Bowl Cover
18. Bowl Cover Assy.
19. Gasket Bowl Cover
20. Pin Float Hinge
21. Float & Lever
22. Needle, Seat, Gasket
23. Bracket Dashpot
24. Nut Dashpot
25. Lockwasher Dashpot
26. Dashpot
27. Retainer Pump Link
28. Pump Link
29. Pump Link Stud
30. Pump Operating Rod
31. Pump Spring Retainer
32. Pump Spring
33. Pump Plunger
34. Inlet Check Ball Retainer
35. Inlet Check Ball
36. Air Bleed Nozzle (94)
37. Nozzle Air Bleed Gasket
38. Nozzle Bar Clamp Screw
39. Nozzle Bar Clamp
40. Pump Discharge Nozzle
41. Pump Nozzle Gasket
42. Pump Discharge Needle
43. Idle Tube
44. Nozzle Bar
45. Nozzle Bar
46. Nozzle Bar Gasket
47. Screw & Lockwasher to Bowl
48. Screw & Lockwasher to Bowl
49. Choke Control Bracket
50. Float Bowl Assy.
51. Main Jet Plug
52. Main Jet Plug Gasket
53. Main Jet
54. Economizer Valve Assy.
55. Economizer Valve Gasket
56. Pump Rod Felt Retainer
57. Pump Rod Felt
58. Flange Gasket
59. Spark Valve
60. Spark Valve Gasket
61. Idle Adj Needle
62. Idle Adj Spring
63. Fast Idle Cam Retainer
64. Fast Idle Cam
65. Throttle Body
66. Flange Gasket
67. Pump Return Spring
