Holley 5200 Float Circuit

Understanding the Float Circuit in the Holley 5200:

1. Float Bowl: This is a chamber that holds the fuel. The level of fuel here is critical for the carburetor's performance.

2. Float: This is a buoyant component sitting in the fuel in the float bowl. Its position rises and falls with the level of the fuel.

3. Needle Valve and Seat: The float is connected to a needle valve. When the float rises, it pushes the needle valve into its seat, which cuts off the fuel supply from the fuel pump. Conversely, when the float drops, the needle valve opens, allowing more fuel into the bowl.

4. Vent System: This ensures that the pressure inside the float bowl is balanced with the outside atmospheric pressure.

Adjusting the Float Level:

Adjusting the float level in a Holley 5200 is a crucial process for ensuring optimal performance and fuel efficiency. Here’s a step-by-step guide:

1. Safety First: Ensure the engine is off and cool. Work in a well-ventilated area to avoid fuel vapors.

2. Access the Float Bowl: Depending on the specific model, you may need to remove the air cleaner and other components to access the float bowl.

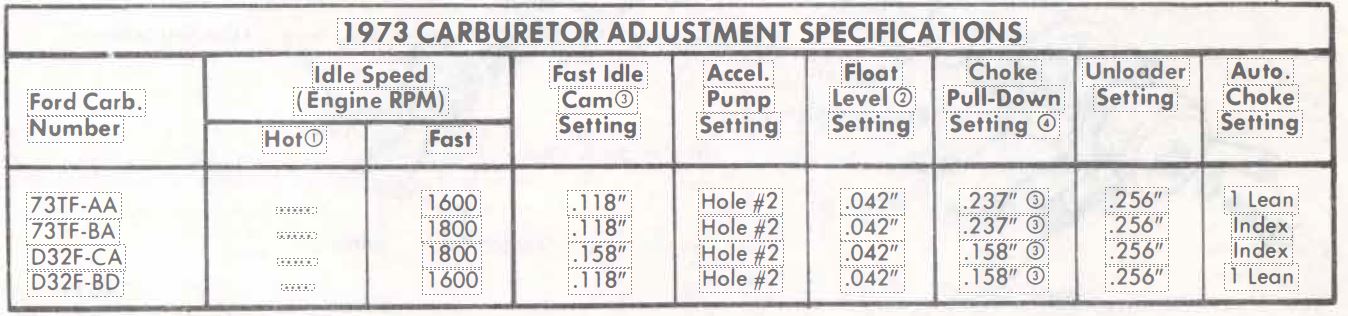

3. Check Manufacturer Specifications: Before making any adjustments, refer to the manufacturer's specifications for the correct float level.
   K4174 Specifications
   K4318 Specifications
   K4396 Specifications
   K4401 Specifications

4. Viewing or Removing the Float Bowl Cover: On some models, you might be able to view the float level through a sight plug on the side of the bowl. If not, you'll need to remove the float bowl cover. Be careful of any gaskets or seals.

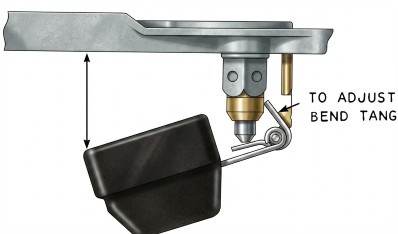

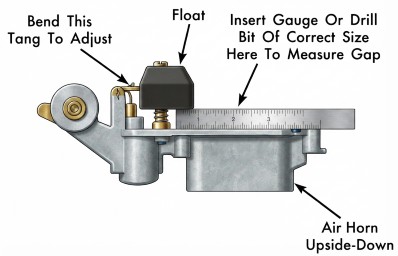

5. Adjusting the Float: The adjustment is typically made by bending the metal tab that the float is attached to. This tab controls the position at which the float sits in the fuel, thus controlling the needle valve. Remove the float when adjusting. Any pressure on the viton needle can cause damage to the needle resulting in flooding.

   • To Lower the Fuel Level: Bend the tab so that the float sits lower in the fuel. This causes the needle valve to close sooner, reducing the fuel level in the bowl.

   • To Raise the Fuel Level: Bend the tab slightly so that the float sits higher in the fuel. This allows the needle valve to stay open longer, increasing the fuel level in the bowl.

6. Recheck and Fine-Tune: After making adjustments, reassemble any components you removed and start the engine to check the performance. You may need to repeat the adjustment process to fine-tune the float level.

7. Final Checks: Look for any signs of fuel leaks and ensure that all components are securely reassembled.

Important Tips:

• Be Gentle: When adjusting the float, be gentle. The components can be delicate and bending them too far or too fast can cause damage.

• Consistent Level: Aim for a consistent fuel level that meets the manufacturer's specifications. An incorrect level can lead to poor engine performance, flooding, or fuel starvation.

• Check for Other Issues: If you're having problems with the float system, also check for dirt or debris that might be causing the needle valve to stick or malfunction.

Adjusting the float level in a Holley 5200 carburetor is a relatively straightforward process, but it requires patience and precision. Always refer to the specific guidelines for your carburetor model and engine type.
