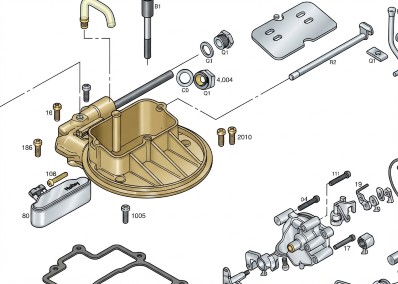

The "hook" or curved shape at the top of the vent tubes (often called "J-tubes" or vent extensions) on Holley carburetors serves two primary engineering purposes:
-
Preventing Fuel Slosh and Spillage: Inside the carburetor, the float bowls must be vented to atmospheric pressure so the fuel can flow correctly. However, during hard acceleration, sharp cornering, stopping, or operating on rough terrain/water, fuel can slosh inside the bowl. The curved, hook-like bend prevents liquid fuel from splashing straight up and out of the vent tubes.
-
Internal Fuel Containment / Re-routing: If the carburetor floods or fuel sloshes violently, the inverted hook shape redirects any escaping raw fuel back down into the carburetor's throat or air cleaner assembly rather than letting it spill externally onto a hot intake manifold, which is a major fire hazard.
Depending on whether your specific 2010 setup is intended for street, off-road, or marine use, these extended curved vents ensure the fuel bowl stays properly pressure-equalized to the atmosphere while keeping the fuel safely contained where it belongs.
