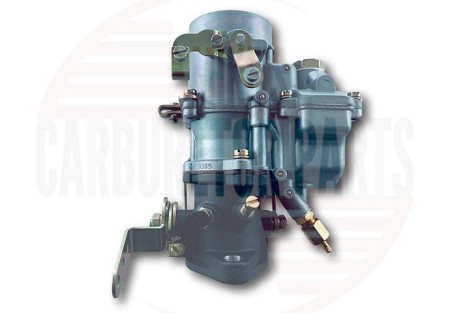

High Quality carburetor made especially for Chevrolet 6 cyl engines to replace original Rochester model B/BC 1bbl factory carburetors.
Fits most 1937-1967 4cyl and 6cyl Chevy engines 192" up thru 260".
Some applications may require a different air filter than factory stock. Jetted with adjustable main jet, manual choke.
SPECS:
- Nominal CFM: 200-215. Engines up to 270ci
- Overall height = 6 1/2"
- Bore =1.507"
- Elongated bolt holes fits manifolds with 2 11/16" and 2 15/16" ON CENTER bolt pattern
- Venturi is 30mm. Flows fine for all single carb applications up to 270ci displacement.
- Top mounting for the air cleaner is 2 1/4" diameter.
- Inlet thread: 1/8th - 27 NPT
Includes the mounting gasket and a must have in-line fuel filter.
Watch a video about this carburetor:
Uses a clamp on air cleaner.
UNIVERSAL carburetors are manufactured to the highest quality standards, and contain alcohol resistant parts thru out, for long service life, under normal operating conditions.
Our fully UNIVERSAL carburetors are especially made to allow a wider variety of external adjustments. They have fully adjustable throttle arms, and externally adjustable high speed main jets. This allows the throttle arm to be indexed to any point you may need the arm to move. The externally adjustable main jet allows you to fine tune the high speed rich/lean mixture to the exact demands of your current engine. Variations in fuel lines, vacuum lines, choke cables and air cleaners may require re-routing or adapting of those items. Variations are usually not a problem on standard 1904 carburetors.
Warranty:
Carburetors are not returnable once fuel has been put through them. Please check carefully for fitment before installing and using any replacement carburetor.
Your DAYTONA UNIVERSAL CARBURETOR is manufactured to the highest quality standards, and are warranted, to be free from defects in both workmanship and material for a period of (1) year from the date of purchase, provided that the product is properly installed, subjected to normal use and service and that the product is not modified or changed in any way, nor damaged because of negligence by customer or installer or used for racing or competition purposes.
If you believe that you have a defective product, it must be returned, freight prepaid, directly to Daytona Parts Company LLC, along with Proof of purchase and a complete description of the problem.
If a thorough inspection of the product by the factory indicates defects in workmanship or material, our sole obligation shall be to repair or replace the product. Warranty covers only the product itself and not the cost of Installation or removal.
Warranty is void under the following conditions.
Enclosed fuel filter is not installed; dirt or rust enters the carburetor for any reason; if carburetor disassembly is attempted by either purchaser or third party; incorrect usage of aftermarket gasoline additives or long periods of inactivity resulting in varnish buildup inside the carburetor; Any usage of gasoline alcohol content over 10%; Stripped screws, inlet threads, bent or broken levers or castings are not normal warranty issues, but an indication of misuse by the purchaser or third parties.
Warranty Disclaimer
Due to the nature of replacement or performance applications, the parts or carburetors are sold without any expressed warranty or any implied warranty of merchantability or fitness for a particular purpose. Daytona Parts Company LLC shall not, under any circumstances, be liable for any special, incidental, or consequential damages, including, but not limited to, damage or loss of property or equipment, loss of profits or revenue, cost of purchased or replaced goods, or claims of customers of the purchaser, which may arise and/or result from the sale, installation or use of these parts. Check with your State vehicle emission regulating authorities before installation of any parts or carburetors. Daytona Parts Company LLC, is not liable for your vehicles emission law compliance, or for the failure of an emissions test or inspection.
